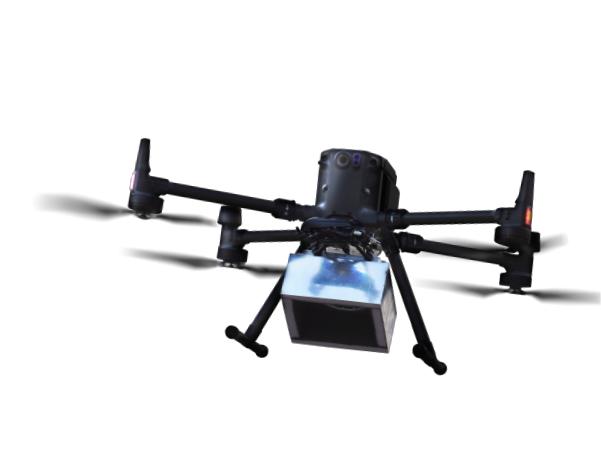

YBD3010 airborne acoustic imager is equipped with a dedicated pan/tilt and integrated with the main engine of the acoustic imager. Combined with the development of DJI PSDK, YBD 3010 can quickly dock with M300RTK, which has good anti-interference and stability. It can be used for all-weather live detection, and can sense the ultrasonic wave/sound wave generated by partial discharge, and get accurate acoustic cloud image through acoustic imaging technology. Self-developed pan/tilt adapts to UAV communication, with highly integrated design, making it easier to control and fly. YBD3010 airborne acoustic imager can be used for forward-looking pre-maintenance detection of power equipment such as transmission and distribution lines and railway lines; And petrochemical, forest fire prevention, emergency rescue, industry, testing services and other applications.
|
|
|
Product features
High-efficiency
The acoustic imager has a large field of view of 62 and a refresh rate of 25FPS, and the inspection efficiency of long transmission lines is improved by flying.
Directly perceived through the senses
High-precision image fusion algorithm can accurately locate the partial discharge position, generate audio-visual cloud images and send them back to the UAV controller for display, so as to visually display the partial discharge fault point.
intelligence
It has off-line PD type identification function, which can display PRPD map in real time during inspection and intelligently diagnose PD fault types.
Anti-noise design
Anti-noise algorithm+noise reduction structure can easily cope with noise interference and realize micro-partial discharge detection.
High adaptability
Universal UAV adapts to mainstream electric UAVs, such as DJI M300RTK and PSDK development, express installation and disassembly, and single operator controls the UAV at the same time.
Quality after-sales service
2-year warranty; 24h response; Adequate spare parts; Audio-visual professional team provides equipment and test reinforcements.
Technical parameter
|

|
