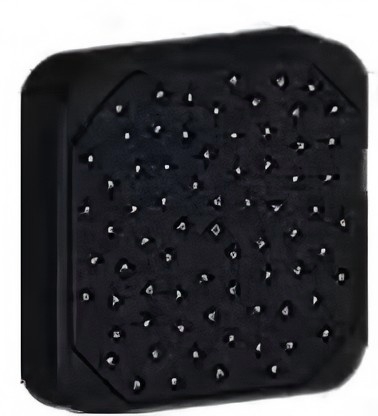

YBS3010 online acoustic imaging device is a fixed acoustic module that supports ultrasonic frequency band detection. The instrument uses microphone array beamforming technology to obtain sound source distribution data, and cooperates with high-definition cameras to collect real-time video images. The sound source distribution data is integrated with the video image through sound and light fusion, presenting invisible sound sources intuitively on the display screen. The module adopts an all aluminum alloy shell, which is sturdy and durable, and can adapt to complex and changing working environments. It can help you continuously monitor possible faults such as pressurized gas leaks, vacuum leaks, and partial discharges. This device can also be installed on intelligent inspection robots and drones for more efficient and intelligent fault diagnosis and analysis.
|
|
detailed content
Product Characteristics
Easy to install
Non contact deployment, easy installation method.
Reduce maintenance costs
Real time monitoring, automatic detection of faults, reducing the number of manual inspection points.
Early detection of problems
In the early stage of equipment failure, if there is abnormal sound, the system will analyze and determine the location of the fault, and immediately sound an alarm.
Comprehensive testing
It can detect some early faults that sensors cannot sense, such as pressure, temperature, vibration, etc.
Easy to view
You can directly view the on-site inspection screen on your phone or computer to locate the fault location.
self-directed learning
Can collect on-site sound to expand the acoustic fault gene library, facilitating automatic diagnosis of fault types.
ITechnical parameter
|
Equipment model
|
YBS3010
|
|
Microphone channel number
|
128 channels
|
|
Test frequency range
|
2kHz ~ 40kHz
|
|
Camera resolution
|
200W
|
|
Frame rate 25 fps
|
25FPS
|
|
Test distance
|
0.5~50m
|
|
Equipment weight
|
about 1kg
|
|
Equipment size
|
160mm X 160mm X 85mm
|
|
Storage
|
8g internal storage, 64G TF card expansion storage
|
|
Working temperature
|
-10℃~+50℃
|
|
Power supply voltage
|
DC12-20V
|
|
Power consumption
|
about 14W
|
|
IP protection level
|
IP56
|
|
Communication mode
|
TCP/RMTP
|
|
Explosion proof certification,
|
Ex IC IIC T4 Gc
|
|
